Kataura-Plot for Resonant Raman

Japanese Mode is Here

Updated: '02/1/18


In this home page you can find

Here, the carbon-carbon interaction gamma0 = 2.9 eV, bond length acc = 0.144 nm
and the Radial Breathing Mode (RBM) frequency (cm-1) = 248 / Diameter (nm)


For Normal and Zoomable Kataura plots click each pictures.

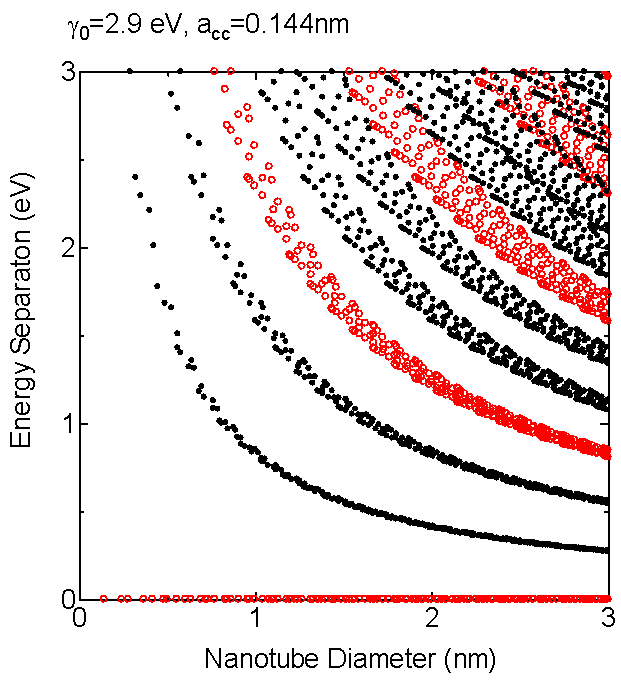

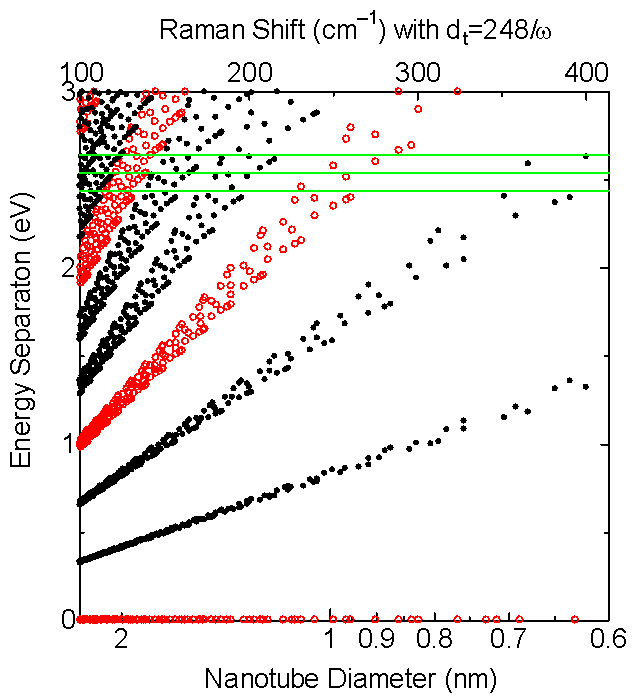

Left one have linear diameter axis and right one have linear Raman shift axis
(all are pdf files and you need acrobat reader)

Normal
Zoomable
for (n,m)
Assignment

Tabulated data for metalic tubes
Tabulated data for semiconductor tubes
Tabulated data for both

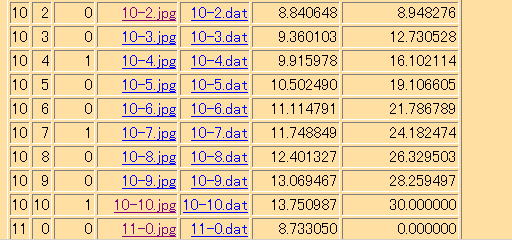

n, m, metal nor not, diameter (A), chiral angle (deg.), peakposition from Fermi level (eV), peakhight
are tabulated. You can reproduce abobe graphs very easily!

You can try the interactive plot in JavaScript by Dr. Vlad Gladkikh at IBS Ulsan.

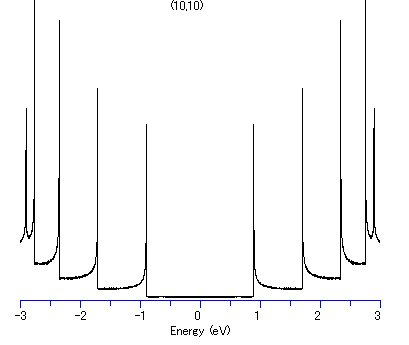

For One-dimensional DOS for each chiralities,

Sample (10,10)

click either full table type or chirality picture type below.


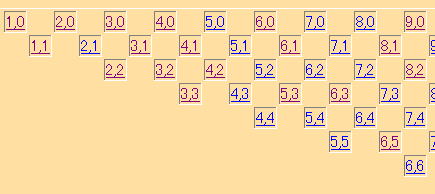

Click picture below for explanations and discussions

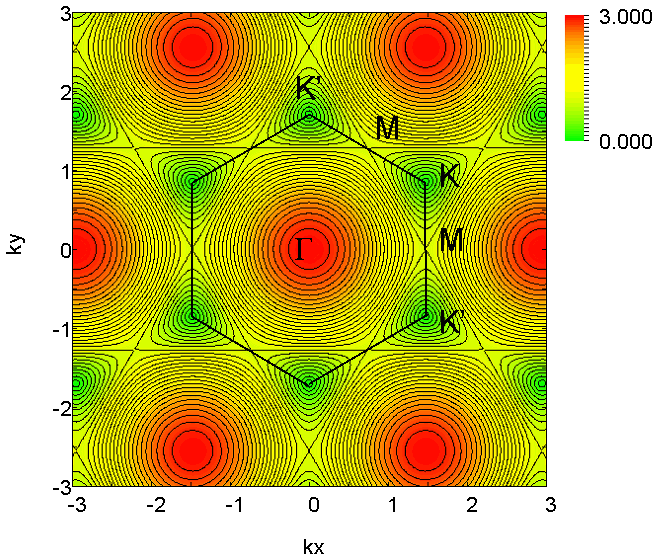

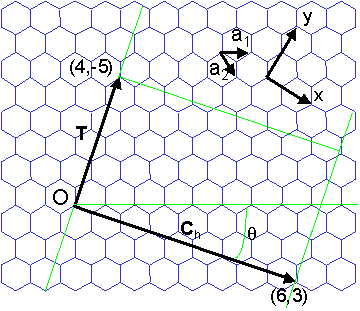

Details of chirality

Discussions of 1D DOS
