Updated: '02/12/13
Question:
> This program is to create SWCNT , this
is very useful to me but how can I
> make a MWCNT with this program?
Answer:
It is quite easy to make MWNTs, because the
coordinates can be made just the super-impose
of
SWNTs.
If you want to make the super-impose of binary
files *.pv, you can use our utility program
pvutility.exe
http://www.photon.t.u-tokyo.ac.jp/~maruyama/pvwin/pvwin.html
Download pvutil.zip
First, you should make two pv files with
different
diameters. Rename swnt_pos.pv to arbitrary
name
each time, say pos1.pv and pos2.pv
1. Run pvutility.exe
2. Select [File Processing] tab.
3. Select [Combine PVs]
4. Drag & Drop pos1.pv to Input File
1:
5. Drag & Drop pos2.pv to Input File
2:
6. Input the output File:, say pos12.pv
7. Push Run
You have DWNT pos12.pv.
You can just continue to super-impose more
files.

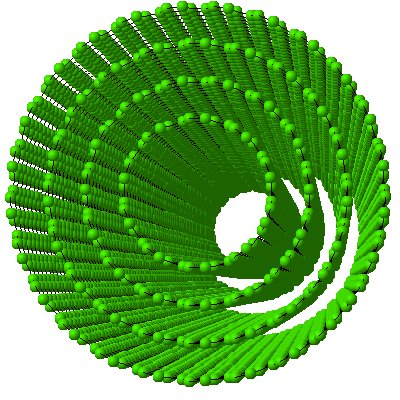

An example is below: (10,10)@(15,15)@(20,20)@(25,25)
@
